Impederkerne

Material K 2006

Typ Zch.-Nr. Abmessungen Datenblatt
D/mm d/mm l/mm Nuten
S 3/200A 1 3 200 PDF Icon
S 4/200A 1 4 200 PDF Icon
S 5/200A 1 5 200 PDF Icon
S 6/200A 1 6 200 PDF Icon
S 7/200A 1 7 200 PDF Icon
S 8/200A 1 8 200 PDF Icon
S 10/200A 1 10 200 PDF Icon
S 11/200A 1 11 200 PDF Icon
S 12/200A 1 12 200 PDF Icon
S 14/200A 1 14 200 PDF Icon
S 15/200A 1 15 200 PDF Icon
S 16/200A 1 16 200 PDF Icon
S 18/200A 1 18 200 PDF Icon
S 20/200A 1 20 200 PDF Icon
S 22/200A 1 22 200 PDF Icon
S 5/200B 2 5 200 6 PDF Icon
S 6/200B 2 6 200 6 PDF Icon
S 7/200B 2 7 200 6 PDF Icon
S 8/200B 2 8 200 6 PDF Icon
S 9/200B 2 9 200 6 PDF Icon
S 10/200B 2 10 200 6 PDF Icon
S 11/200B 2 11 200 6 PDF Icon
S 12/200B 2 12 200 8 PDF Icon
S 13/200B 2 13 200 8 PDF Icon
S 14/200B 2 14 200 8 PDF Icon
S 15/200B 2 15 200 8 PDF Icon
S 16/200B 2 16 200 8 PDF Icon
S 17/200B 2 17 200 8 PDF Icon
S 18/200B 2 18 200 8 PDF Icon
S 19/200B 2 19 200 8 PDF Icon
S 20/200B 2 20 200 8 PDF Icon
S 21/200B 2 21 200 8 PDF Icon
S 22/200B 2 22 200 8 PDF Icon
S 23/200B 2 23 200 8 PDF Icon
S 24/200B 2 24 200 8 PDF Icon
S 25/200B 2 25 200 8 PDF Icon
S 27/200B 2 27 200 8 PDF Icon
S 30/200B 2 30 200 8 PDF Icon
S 3/200C 3 3 200 PDF Icon
S 4/200C 3 4 200 PDF Icon
S 5/200C 3 5 200 PDF Icon
S 6/200C 3 6 200 PDF Icon
S 7/200C 3 7 200 PDF Icon
S 8/200C 3 8 200 PDF Icon
S 9/200C 3 9 200 PDF Icon
S 10/200C 3 10 200 PDF Icon
S 11/200C 3 11 200 PDF Icon
S 12/200C 3 12 200 PDF Icon
S 13/200C 3 13 200 PDF Icon
S 14/200C 3 14 200 PDF Icon
S 15/200C 3 15 200 PDF Icon
S 16/200C 3 16 200 PDF Icon
S 18/200C 3 18 200 PDF Icon
S 19/200C 3 19 200 PDF Icon
S 20/200C 3 20 200 PDF Icon
S 22/200C 3 22 200 PDF Icon
HZ 5/2/200g 4 5 2 200 PDF Icon
HZ 6/3/200g 4 6 3 200 PDF Icon
HZ 7/3/200g 4 7 3 200 PDF Icon
HZ 8/4/200g 4 8 4 200 PDF Icon
HZ 9/4/200g 4 9 4 200 PDF Icon
HZ 10/5/200g 4 10 5 200 PDF Icon
HZ 11/5/200g 4 11 5 200 PDF Icon
HZ 12/6/200g 4 12 6 200 PDF Icon
HZ 13/6/200g 4 13 6 200 PDF Icon
HZ 14/7/200g 4 14 7 200 PDF Icon
HZ 15/7/200g 4 15 7 200 PDF Icon
HZ 16/8/200g 4 16 8 200 PDF Icon
HZ 17/8/200g 4 17 8 200 PDF Icon
HZ 18/9/200g 4 18 9 200 PDF Icon
HZ 19/9/200g 4 19 9 200 PDF Icon
HZ 20/10/200g 4 20 10 200 PDF Icon
HZ 21/10/200g 4 21 10 200 PDF Icon
HZ 22/11/200g 4 22 11 200 PDF Icon
HZ 25/12/200g 4 25 12 200 PDF Icon
HZ 26/23/200g 4 26 13 200 PDF Icon
HZ 28/14/200g 4 28 14 200 PDF Icon
HZ 30/15/200g 4 30 15 200 PDF Icon
HZ 6/3/200GF 5 6 3 200 4 PDF Icon
HZ 8/3/200GF 5 8 3 200 6 PDF Icon
HZ 10/3/200GF 5 10 3 200 6 PDF Icon
HZ 11/3/200GF 5 11 3 200 6 PDF Icon
HZ 12/4/200GF 5 12 4 200 8 PDF Icon
HZ 13/5/200GF 5 13 5 200 8 PDF Icon
HZ 14/4/200GF 5 14 4 200 8 PDF Icon
HZ 15/5/200GF 5 15 5 200 8 PDF Icon
HZ 16/5/200GF 5 16 5 200 8 PDF Icon
HZ 17/5/200GF 5 17 5 200 8 PDF Icon
HZ 18/6/200GF 5 18 6 200 8 PDF Icon
HZ 19/6/200GF 5 19 6 200 8 PDF Icon
HZ 20/6/200GF 5 20 6 200 8 PDF Icon
HZ 21/6/200GF 5 21 6 200 8 PDF Icon
HZ 22/6/200GF 5 22 6 200 8 PDF Icon
HZ 23/6/200GF 5 23 6 200 8 PDF Icon
HZ 25/10/200GF 5 25 10 200 8 PDF Icon
HZ 26/10/200GF 5 26 10 200 8 PDF Icon
HZ 28/13/200GF 5 28 13 200 8 PDF Icon
HZ 29/10/200GF 5 29 10 200 8 PDF Icon
HZ 32/13/200GF 5 32 13 200 8 PDF Icon
HZ 33/10/200GF 5 33 10 200 8 PDF Icon
HZ 40/20/200GF 5 40 20 200 8 PDF Icon
HZ 44/20/200GF 5 44 20 200 8 PDF Icon
HZ 48/20/200GF 5 48 20 200 8 PDF Icon
HZ 54/20/200GF 5 54 20 200 8 PDF Icon
HZ 60/30/200GF 5 60 30 200 8 PDF Icon
HZ 73/36/200GF 5 73 36 200 8 PDF Icon
HZ 80/40/200GF 5 80 40 200 8 PDF Icon
HZ 95/48/200GF 5 95 48 200 8 PDF Icon

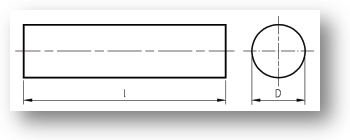

Zeichnung 1

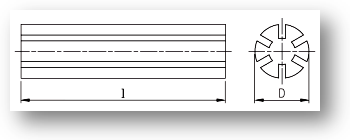

Zeichnung 2

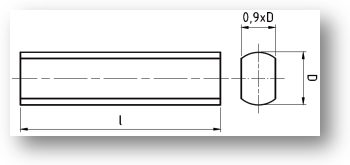

Zeichnung 3

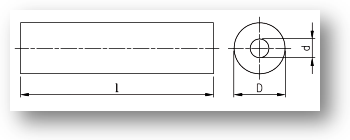

Zeichnung 4

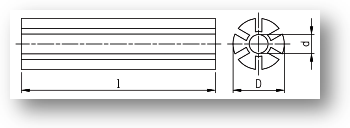

Zeichnung 5
